How do solar street lights achieve absolute circuit safety during heavy rain?
Release Time : 2026-03-03
In outdoor lighting systems, solar street lights are constantly exposed to the harsh realities of the natural environment. Heavy rain is one of the most threatening challenges. Rainwater is not only conductive, but its high-pressure impact can also penetrate even the smallest cracks. Once it seeps into the lamp head, battery compartment, or controller, it can easily cause short circuits, leakage, or even fires. Solar street lights have successfully built an "absolute zero-short-circuit" safety barrier through comprehensive protective design from structure to materials. This is not due to a single technology, but rather the result of IP65-level sealing technology, an integrated molding structure, and the synergistic effect of multiple physical barriers, ensuring that even in torrential rain, the internal precision 60W LED light source and 40AH lithium iron phosphate battery can still operate safely and stably.
1. Core Defense Line: IP65-level Sealing and Labyrinth Waterproof Structure
2. Structural Foundation: One-piece Molded Tapered Tube and Seamless Protection
Besides the sealing of the lamp head itself, the structural integrity of the support system is equally crucial. Traditional welded lamp posts are prone to developing micropores at the weld seams due to uneven hot-dip galvanizing or long-term corrosion, becoming channels for rainwater intrusion, which can then corrode the internal conduit and cause short circuits. The one-piece molded tapered tube used in these solar street lights fundamentally eliminates this risk. The tube, formed in one piece through a rolling process, has no longitudinal welds and a smooth, continuous surface. The subsequent hot-dip galvanizing process causes a metallurgical reaction between the zinc layer and the steel substrate, forming a dense alloy protective layer. Even if the outdoor anti-rust paint applied to the surface shows minor peeling under long-term exposure, the underlying zinc layer still provides cathodic protection, preventing rust perforation.
3. Compartmental Isolation: An Independent Fortress for the Battery and Control System
For the core 40AH lithium iron phosphate battery and intelligent controller, the system employs an independent waterproof compartment design. These critical components are typically housed in a dedicated waterproof box on the back of the lamp head or the top of the pole. The box cover uses a deep-groove fitting structure and is filled with highly weather-resistant polyurethane foam or fitted with EPDM sealing strips.
In summary, Solar Street Lights constructs a three-dimensional waterproof system through IP65-rated multi-sealed lamp heads, a seamless, one-piece molded tapered pole, and independently isolated battery compartments. This rigorous logic, from microscopic sealing to macroscopic structure, reduces the risk of being washed away by torrential rain to zero, ensuring that every street lamp can become a solid beacon illuminating the way home on stormy nights, thus fulfilling the promise of technology to safeguard light.
1. Core Defense Line: IP65-level Sealing and Labyrinth Waterproof Structure

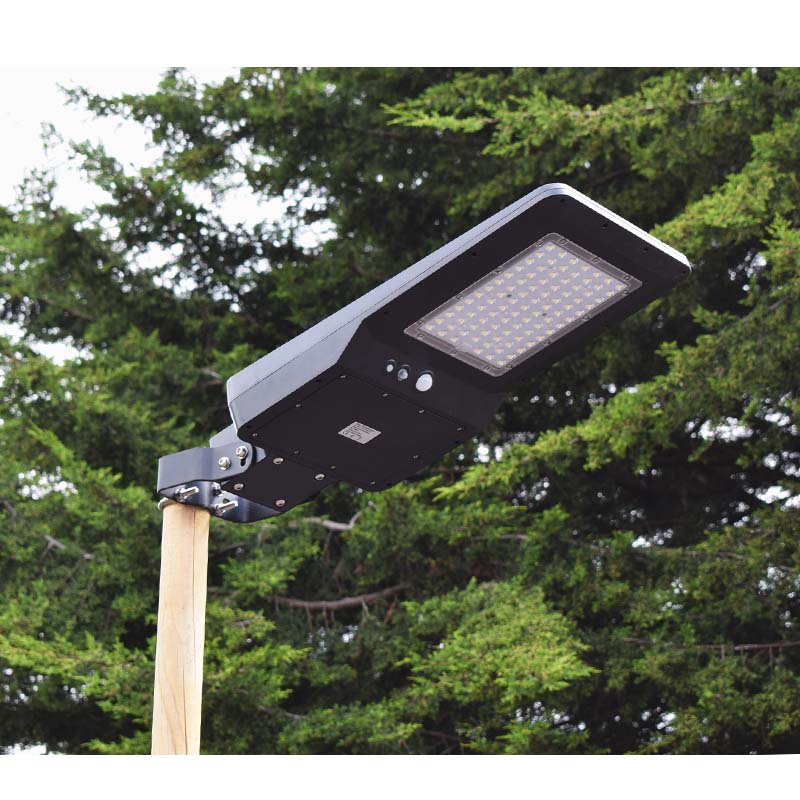

The first line of defense for ensuring zero short circuits lies in the superior sealing performance of the LED lamp head. The IP65 waterproof rating means that the lamp head is completely dustproof and can withstand low-pressure water jets from any direction. This rating is achieved through a precise "labyrinthine" structural design. At the junctions of the lamp head housing and lens, and the heat sink and casing, engineers did not simply rely on glue, but instead used high-precision silicone sealing rings for physical pressing.
2. Structural Foundation: One-piece Molded Tapered Tube and Seamless Protection
Besides the sealing of the lamp head itself, the structural integrity of the support system is equally crucial. Traditional welded lamp posts are prone to developing micropores at the weld seams due to uneven hot-dip galvanizing or long-term corrosion, becoming channels for rainwater intrusion, which can then corrode the internal conduit and cause short circuits. The one-piece molded tapered tube used in these solar street lights fundamentally eliminates this risk. The tube, formed in one piece through a rolling process, has no longitudinal welds and a smooth, continuous surface. The subsequent hot-dip galvanizing process causes a metallurgical reaction between the zinc layer and the steel substrate, forming a dense alloy protective layer. Even if the outdoor anti-rust paint applied to the surface shows minor peeling under long-term exposure, the underlying zinc layer still provides cathodic protection, preventing rust perforation.
3. Compartmental Isolation: An Independent Fortress for the Battery and Control System
For the core 40AH lithium iron phosphate battery and intelligent controller, the system employs an independent waterproof compartment design. These critical components are typically housed in a dedicated waterproof box on the back of the lamp head or the top of the pole. The box cover uses a deep-groove fitting structure and is filled with highly weather-resistant polyurethane foam or fitted with EPDM sealing strips.
In summary, Solar Street Lights constructs a three-dimensional waterproof system through IP65-rated multi-sealed lamp heads, a seamless, one-piece molded tapered pole, and independently isolated battery compartments. This rigorous logic, from microscopic sealing to macroscopic structure, reduces the risk of being washed away by torrential rain to zero, ensuring that every street lamp can become a solid beacon illuminating the way home on stormy nights, thus fulfilling the promise of technology to safeguard light.
